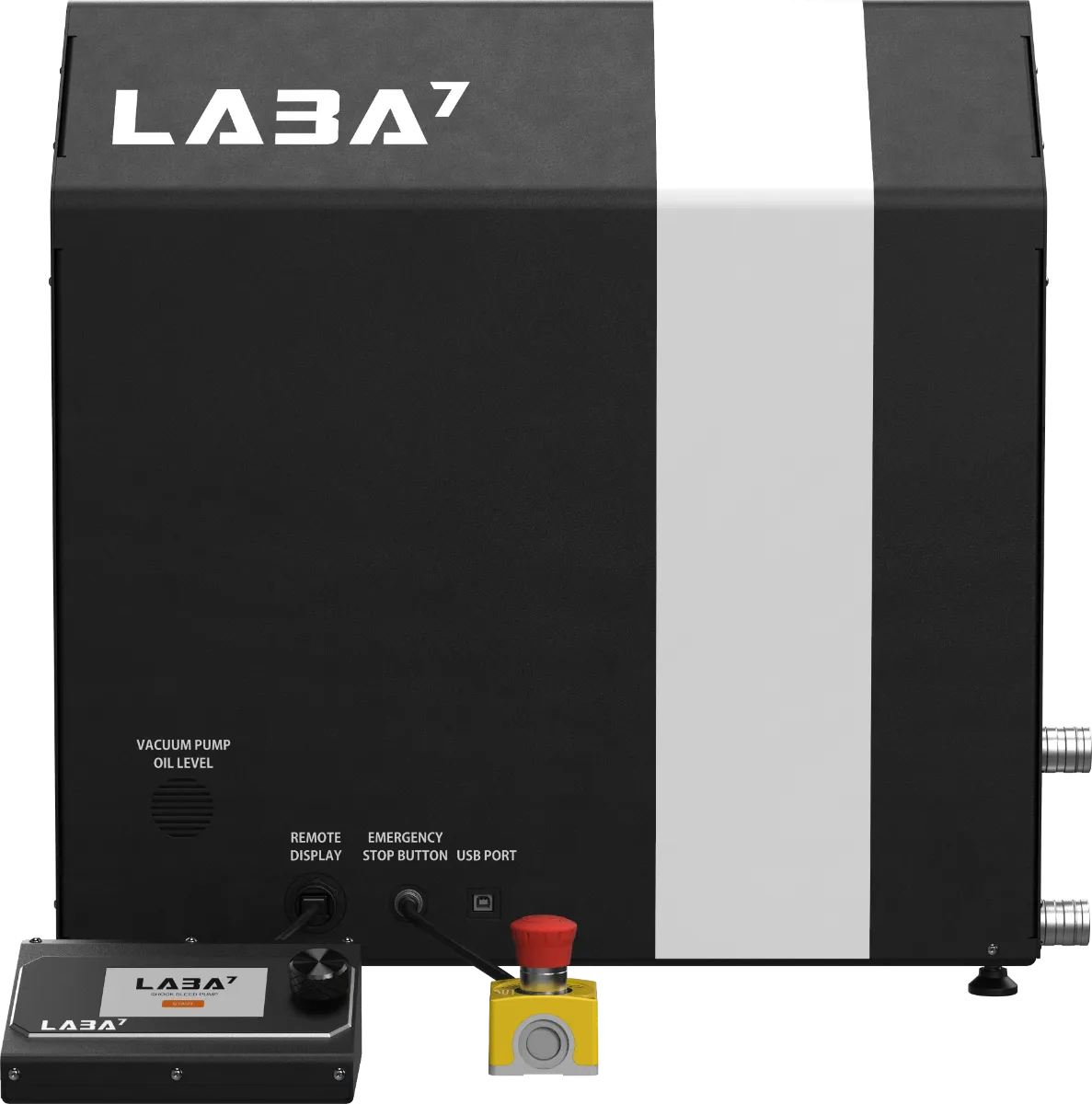

Fully automatic shock vacuum bleed pump
Refilling oil for shocks has never been easier. Connect, press the button, and the LABA7 vacuum bleed pump will do the rest.
Forget air bubbles. Perfect oil refill every time
We developed three vacuum bleeder pump models that easily service any shock. LABA7 vacuum bleed pumps are easy to use, efficient, and save you time. Modern components and exceptional build quality ensure no air is present while servicing anything from the tiniest MTB to the largest off-road shocks.
They share essential features to ensure high vacuum density and quality oil fill but are designed for different use cases. Contact us and the LABA7 team will help you choose the pump that is the best for your business.
Vacuum Bleed Pump MODULE
| Fully automatic | |
| 8 custom presets | |
| Internal tanks | No |
| External tanks | Yes |
| Two filling modes | Bladder shock and Separating piston |
| Adjustable pressure | 0.5 - 5 BAR |
| Adjustable vacuum | -0.3 - -0.99 BAR |
| Dimensions | 260 x 271 x 343 mm |
Probably, the most advanced pump to bring to the track day in your racing van or truck. It is very compact and will fit in the tightest spaces but still will be able to deliver the same features as our bigger pumps. Connect two external tanks to be able to fill up to two shocks at the same time.
Price: 2500 EUR
Vacuum Bleed Pump DAILY
| Fully automatic | |
| 8 custom presets | |
| Internal tanks | Yes, two 3-liter tanks |
| External tanks | No |
| Two filling modes | Bladder shock and Separating piston |
| Adjustable pressure | 0.5 - 5 BAR |
| Adjustable vacuum | -0.3 - -0.99 BAR |
| Dimensions | 333x497x478 mm |
This pump is designed to stand in every workshop and help refill shocks with ease. DAILY is slightly smaller than the PRO pump and shares key features. It has two 3-liter tanks and is capable of filling two shocks at the same time.
Price: 2950 EUR
Vacuum Bleed Pump PRO
| Fully automatic | |
| 8 custom presets | |
| Internal tanks | Yes, two 6-liter tanks |
| External tanks | Yes, optional |
| Two filling modes | Bladder shock and Separating piston |
| Adjustable pressure | 0.5 - 5 BAR |
| Adjustable vacuum | -0.3 - -0.99 BAR |
| Dimensions | 411x497x551 mm |
The optional external oil tank expands its functionalities even further. It allows you to fill up to three shocks simultaneously and makes it ideal for professionals who are working with more than two types of shock absorber oil.
Price: 4000 EUR
External vacuum pump tank
It extends the versatility of PRO and MODULE vacuum bleed pumps. When you are working with multiple types of oil, you can service different shocks without ever needing to change the type of oil in the tank. It comes in two sizes: 3 and 6 liters.
Price:
500 EUR (3-liter)
700 EUR (6-liter)
Adapters that make servicing even easier
Experience the epitome of efficiency as our adapter kits simplify the bleeding process, eliminating air pockets that could compromise the performance of your shock absorbers. By ensuring a bubble-free operation, our adapters contribute to a smoother, more responsive ride, allowing your equipment to deliver its best performance in any condition.
Advantages of LABA7 vacuum bleed pumps
Automatic vacuuming and filling
Save your time by easily programming vacuum and fill cycles. It is as easy as making a cup of coffee – connect a shock or a bladder, press the button, and LABA7 shock vacuum pumps will do everything for you. In the meantime, you can rest, do other work, or you can monitor vacuum and pressure levels with high precision in real-time on the LCD screen.
To ensure maximum safety of the shock, your workshop, and you, we developed smart algorithms that detect if there is a leak in the shock or the system.
Customizable and adjustable presets
LABA7 vacuum bleed pumps allow you to program up to eight cycles to automate your work even further. You can set the time, vacuum and oil pressure, and the number of cycles.
If you are working with multiple types of shocks and bladders, customize and save a preset for each of them.
High-density vacuum
All of our pumps achieve vacuum density as low as 2000 microns. It ensures to reduce the gas content to a minimum during the filling process. At the same time, it enables you to service shocks and bladders faster as it requires performing fewer cycles.
Altitude adjustment
Elevation can play a significant role in the optimal vacuum process. That is why all of our shock vacuum pumps come with adjustable altitude settings.
Set your elevation above sea level to achieve outstanding results in vacuuming your shocks and bladders.
Multiple shocks filled at the same time
Our suspension vacuum pumps can fill up to three shocks or bladders at the same time. The process is as simple and easy as servicing a single unit. Connect, press the button, and our vacuum bleeder pumps will do the rest.
Why shock vacuum pump is necessary?
To optimize the performance of a damper, it is essential to minimize the amount of gas present in the oil chamber. This is where our vacuum bleed pumps come into play. It extracts air through a bleed port and then automatically switches to pressure filling. The shock is cycled during this process to ensure there are no trapped bubbles in the system.
Fluids are considered incompressible but that is a theory. In practice, a new bottle of suspension oil can contain approximately 10% gas dissolved in the liquid. The vacuum pump plays a crucial role in reducing this gas content to a minimum during the vacuum and filling process.
Automatic vs Manual vacuum bleed pump
Some of the suspension parts, like bladders or cartridges, are very sensitive to vacuum. Being able to adjust the pressure of the vacuum, enables you to bleed them with lower and safer vacuum levels. That is not possible when using a manual device.
Not to mention bleeding shocks manually is a time consuming and messy process. Check out this video for more details and indepth comparison of both automatic and manual bleeding.
