Shock Dyno & Suspension Dynamometers for Professional Testing
Equip your workshop with LABA7 shock dynos. Our dynamometers deliver high-precision testing and user-friendly system design for accurate shock absorber and suspension assessment.
Stop tuning your suspension setups by feel. LABA7 Scotch-Yoke suspension dynos give you clean, repeatable data without the 90s-era software or clunky interfaces. Our dynos range from lightweight portable units to 15HP beasts capable of crushing 20kN loads.

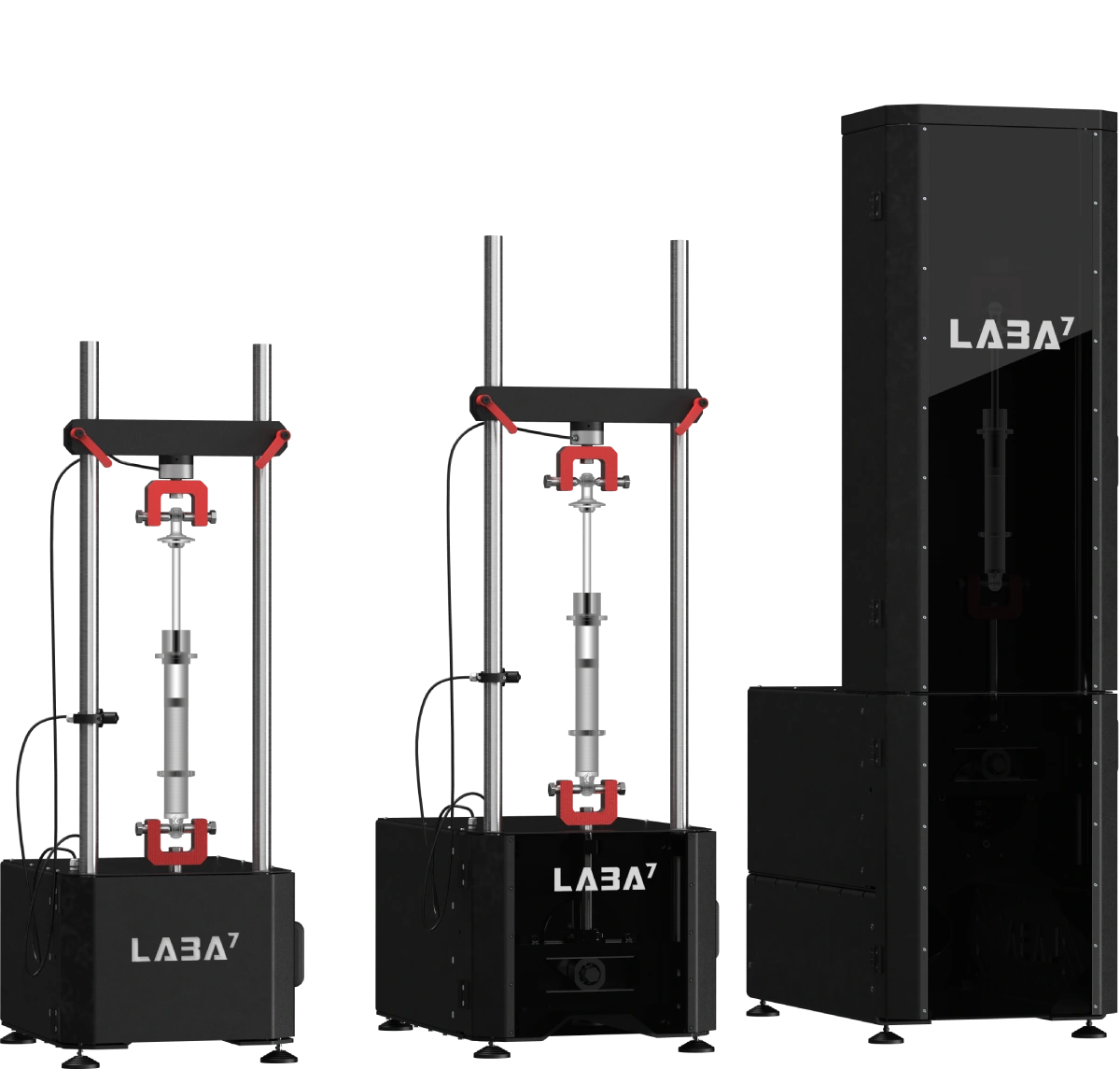

Scotch-Yoke Crank Shock Dynamometers
LABA7 Scotch-Yoke crank shock dynos are engineered for accurate, repeatable suspension and damper testing. The scotch-yoke mechanism ensures consistent sinusoidal motion, making these shock dynamometers ideal for performance tuning, R&D, and quality control applications.
Featherlight
Light
Mid
Heavy
Super Heavy
*Smaller load cells are available upon request.
Looking for even more power and precision? Discover LABA7 Electromagnetic Damper Test System EMA.
Equiped with ironless linear actuators, EMA deliver power, precision, and low maintenance costs.
Why LABA7 Shock Dynos?
Built on Feedback
At LABA7, the relationship doesn’t end at delivery. Customer feedback goes directly into development – new features, refined processes, better data analytics. Once tested and validated, updates roll out to every machine. This is how our dynos keep getting better long after delivery.
No upsell. No new model required.
See how our shock dynos can make your work even easier? Reach out to your LABA7 representative or contact our technical support team. Your input shapes the next update.
That’s how LABA7 machines keep getting better: one real-world insight at a time.
Shock Dyno Software
We own every step of our software development. This approach allows us to create and ship new solutions, features, and bug fixes rapidly. And implement custom requests from customers, of course. Relying on third-party software would make custom feature development slow or impossible.
Our Shock Dyno Software collects data from the data logger, cleans it from noise, and presents it in easy-to-understand graphs. It also lets you define specific test profiles to replicate different road or track scenarios.
Our intuitive interface is designed to let mechanics configure, run, and analyze a complete test cycle in under two minutes.
Built for Real Workshops
We developed LABA7 shock dynos for real-world mechanics and engineers. While focusing on accuracy, we did not forget the daily user. We optimized our suspension dynos to run tests quickly, onboard new employees easily, and test dampers reliably every day.
The testing process is simple and intuitive, streamlined to deliver results without unnecessary complexity. Whether you are an experienced technician or new to dyno testing, the LABA7 shock dynos helps reduce the learning curve and improve workflow.
That is what makes our suspension test systems perfect choice for productivity and performance.
Not sure which model fits your needs?
Benefits of Owning a Shock Dyno
Spot Cavitation, Seal Drag, and Hysteresis Instantly
A suspension dynamometer can quickly identify and diagnose common issues with shock absorbers or forks within seconds. By examining the force vs displacement graph, you can easily understand what is happening with the damper during compression and rebound. Problems such as blocked oil passages, broken shims, cavitation caused by low gas pressure, and more can all be rapidly detected through detailed dyno graph analysis.
Track the Impact of Every Click and Shim Change
With our shock dyno’s advanced comparison feature, you can effortlessly visualize and analyze changes made to your shock absorber or fork. Whether comparing left versus right, front versus back dampers, or different damper settings, our dyno clearly shows the before-and-after effects of your tuning or servicing. This feature is also highly effective for demonstrating performance improvements to customers.
Translate Rider Feedback into Hard Data
Successful suspension tuning requires accurate data and a thorough understanding of shock absorber behavior. By analyzing graph curves alongside rider feedback, you can make data-driven, precise adjustments to fine-tune suspension performance according to the rider’s needs. The shock dynamometer excels here by providing clear visual feedback on how your adjustments affect damper behavior and translate to improved track or road performance.
Eliminate Comebacks and Warranty Disputes
Performing quality control testing on the dyno before returning products to customers is a vital step in guaranteeing customer satisfaction. By thoroughly testing the damper, you can verify your work and eliminate potential errors, reducing the risk of dissatisfied customers. Additionally, this testing provides solid evidence that all work was performed correctly, which can be invaluable in warranty claim situations related to customer damage.
Expand Your Possibilities with Shock Dyno Adapters
LABA7 shock dyno adapters provide a seamless connection, providing the most accurate and insightful testing of your shock absorbers. This results in enhanced suspension performance, improved testing efficiency, and a deeper understanding of your suspension system’s capabilities.
The Hardware: Why Our Data is Cleaner
A suspension dyno accurately simulates the forces and speeds your shock absorbers and dampers experience during real-world riding or driving conditions. By replicating these movements, the dyno provides precise, repeatable tests that help you identify performance issues and optimize suspension settings.
During testing, the dyno moves the fork or shock absorber up and down at user-selected speeds, closely mimicking actual suspension travel. This controlled motion allows you to diagnose problems such as blocked oil passages, worn components, or cavitation caused by gas pressure loss.
At the heart of this process are two critical hardware components: the load cell and the data logger.
Load cells act as transducers, converting the physical forces exerted on the suspension system into electrical signals. They accurately measure compression and rebound forces under varying conditions, detect irregular force patterns, and enable a precise analysis of shock absorber behavior, all feeding into data-driven adjustments and improvements.
The data logger then captures these signals in real time, recording parameters such as force, displacement, velocity, and temperature, ensuring that no measurement is lost during the test cycle.
We developed and build our data logger in-house, because we simply could not compromise on this component. It samples information thousands of times per second extremely close to the original raw signal. Clean, unfiltered, and repeatable.
All test data is displayed in clear, real-time graphs including force versus velocity and force versus displacement, making it easy to analyze shock behavior during compression and rebound phases. With this insight, you can make informed adjustments to improve suspension performance, safety, and ride quality.
LABA7 suspension dynamometer delivers this advanced testing capability through intuitive software and precise hardware, empowering mechanics and racers to tune shocks confidently and accurately.
Want More Control and Precision?
If you’re ready to take shock testing further, the EMA Damper Test System (electromagnetic) delivers superior precision, control, and better performance. Using an electromagnetic linear actuator, it simulates real-world conditions with programmable motion profiles, including non-sinusoidal waveforms that a Scotch-Yoke dyno can’t replicate.
The EMA Damper Test System Dyno also covers a wider speed and displacement range and typically requires less maintenance thanks to fewer mechanical wear points. While it comes at a higher cost and complexity, it’s the go-to choice for professional setups demanding maximum accuracy and flexibility.
Frequently Asked Questions About Shock Dyno
What is a shock dyno and why do I need one?
A shock dyno (dynamometer) measures the performance characteristics of suspension dampers (shocks). It helps you analyze compression and rebound forces, identify inconsistencies, and optimize suspension setups for racing or performance applications.
Is the dyno software included and what does it do?
Yes, the dyno includes intuitive software that records, graphs, and analyzes force vs. velocity and displacement data. It allows you to compare multiple runs, export results, and fine-tune your suspension setup.
What types of shocks can this dyno test?
Our shock dyno is compatible with a wide range of shocks, including mono-tube, twin-tube, coilover, motorcycle, off-road, and racing dampers. Specific adapter kits may be required for certain models.
How accurate are the results?
Our shock dynamometers are engineered with high-precision sensors and calibrated to ensure industry-leading accuracy. This ensures consistent, repeatable measurements for professional and amateur use alike.
What are the setup and maintenance requirements?
The dyno arrives with a detailed setup guide and requires only a standard power outlet and a stable surface. Maintenance is minimal, primarily keeping the sensors and actuator clean and calibrated annually for best results.
